Threaded Connections

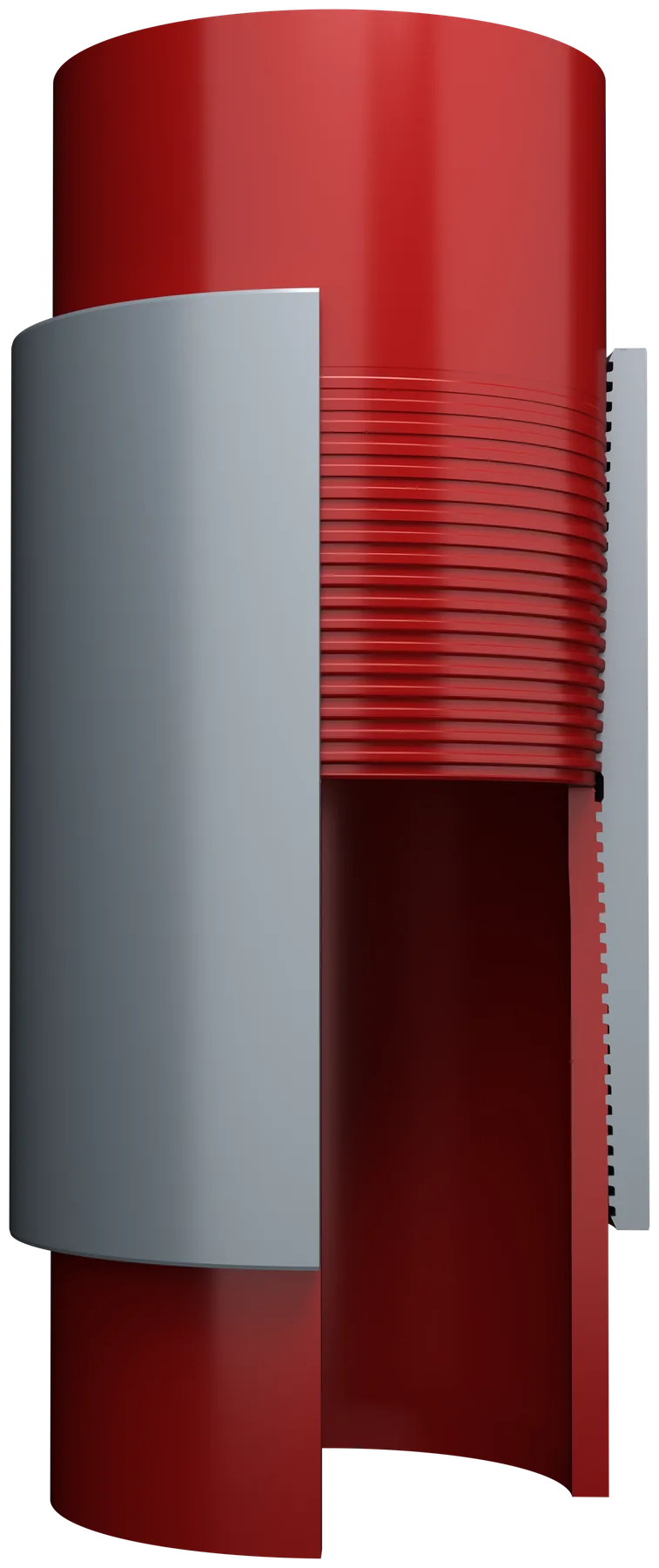

BEN-TCX-HT™
Threaded And Coupled, Semi Premium, Production Casing, Buttress Compatible, High Torque
The BEN‑TCX‑HT is engineered to deliver high‑torque performance while maintaining Buttress compatibility. It employs a dual‑taper pin with an enlarged torque bearing face and controlled internal diameters to achieve higher make‑up, operating and yield torques. Optimized thread interference and relief groove profiles ensure driftability up to yield torque, making the connection ideal for extended‑reach and casing‑while‑drilling applications.
Performance & Sizes
| Size range | 4.500″ – 5.500″ |
| Tension capacity | 100 % |
| Compression capacity | 100 % |
Testing Performed
- Torque Validation
- Fatigue make‑and‑break validation.
- Finite Element Analysis
Key Features
- Built off the standard Buttress platform, ensuring compatibility with existing Buttress equipment.
- Enlarged pin face increases bearing area, raising torque capacity.
- Optimized swaged and bored pin geometry raises make‑up, operating and yield torques while maintaining drift ability.
- Dual‑taper pin design reduces stress concentration near the pin face.
- Advanced manufacturing and quality control practices reduce thread interference and coupling radial stress.
