Threaded Connections

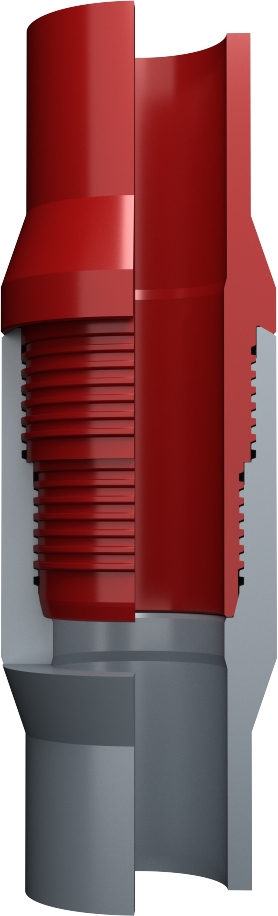

BTS®-6
Integral, Upset, Premium, Workstring, Production Tubing, Special Clearance
The BTS®‑6 is a robust, two‑step connection designed for use with heavy‑wall tubing, offering the increased torque capacity required for extended‑reach laterals and high‑load work‑string operations. Its strength and durability make it an industry standard for milling frac plugs, wellbore clean‑outs and equipment installation or retrieval operations. Backed by a strong field history across a variety of applications, the BTS®‑6 provides a reliable, gas‑tight solution for demanding operational environments
Performance & Sizes
| Size range | 2.375″ – 5.500″ |
| Tension | 100 % – 119 % |
| Compression | 99 % – 149 % |
Testing Performed
- API RP 5C5 / ISO 13679 CAL III Enhanced
- Make & Break
- Sealibility
- Thermal Cycles
- Limit Load
- Field Proven
Key Features
- 6 pitch threads & larger shoulder area than BTS®‑8 provide higher torques required for extended‑reach operations
- Non‑interference threadform nearly eliminates galling, making it ideal for workover programs and rental strings
- Two‑step design with internal & mid‑wall torque shoulders allows for deep stabbing, providing consistent field make‑up & fast running practices
- Integral connection design reduces leak paths compared to API & eliminates coupling‑based running issues
- Connection design eliminates “J‑area” along with its associated corrosion, erosion & abrasion tendency
- Metal‑to‑metal seal designed to be stronger than the pipe body & proven to be +100 % gas tight through deviated wells
