Threaded Connections

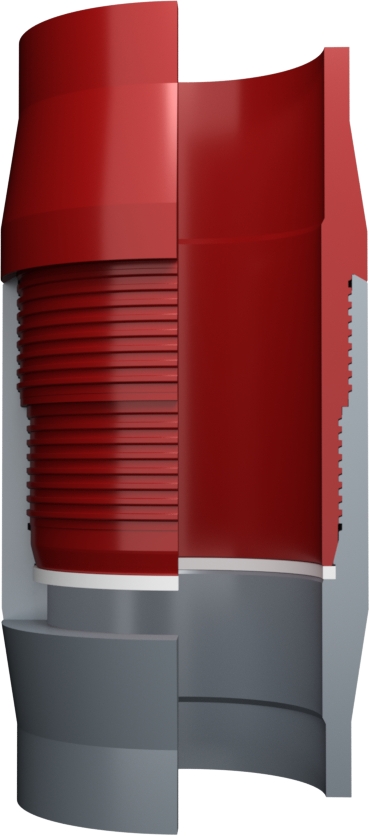

BTS®-6 PR
Integral, Upset, Premium, Injection String, Workstring, Production Tubing, Special Clearance, Coatable
The BTS®‑6 PR is a high‑strength, gas‑tight two‑step connection that includes a precision‑machined groove to accommodate a protective ring (PR), specifically designed for use with Internal Plastic Coating (IPC) systems. This design modification provides a consistent corrosion barrier by allowing the coated pin nose to shoulder directly against the ring, protecting the integrity of the coating throughout the connection. Built on the proven BTS®‑6 platform, the BTS®‑6 PR offers the same durability and sealing reliability, with added protection for corrosive service environments
Performance & Sizes
| Size range | 2.375″ – 5.500″ |
| Tension | 100 % – 119 % |
| Compression | 54 % – 113 % |
Testing Performed
- API RP 5C5 / ISO 13679 CAL III Enhanced
- Sealibility
- Limit Load
- Thermal Cycles
- Field Proven
Key Features
- 6 pitch threads & larger shoulder area than BTS®‑8 provide higher torques required for extended‑reach operations
- Non‑interference threadform nearly eliminates galling, making it ideal for workover programs & rental strings
- Two‑step design with internal & mid‑wall torque shoulders allows for deep stabbing, providing consistent field make‑up & fast running practices
- Integral connection design reduces leak paths compared to API & eliminates coupling‑based running issues
- Connection design eliminates “J‑area” along with its associated corrosion, erosion & abrasion tendency
- Metal‑to‑metal seal designed to be stronger than the pipe body & proven to be +100 % gas tight through deviated wells
