Threaded Connections

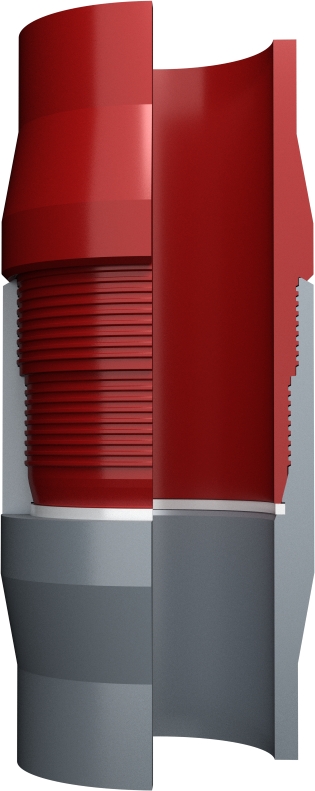

BTS®-8 PR
Integral, Upset, Premium, Injection String, Production Tubing, Special Clearance, Coatable
The BTS®‑8 PR is a gas‑tight, two‑step premium connection built on Benoit®’s trusted BTS®‑8 platform and enhanced with a precision‑machined groove to support Internal Plastic Coating (IPC) systems. This modification allows a Teflon protective ring to be installed at the back of the box, creating an elastic surface for the coated pin nose to shoulder against—helping preserve a consistent corrosion barrier through the connection. The BTS®‑8 PR maintains the strength, sealing integrity and proven reliability of the original BTS®‑8 design with added protection for corrosive or coated service environments
Performance & Sizes
| Size range | 2.375″ – 4.500″ |
| Tension | 100 % – 158 % |
| Compression | 44 % – 95 % |
Testing Performed
- API RP 5C5 / ISO 13679 CAL III Enhanced
- Sealibility
- Limit Load
- Thermal Cycles
- Field Proven
Key Features
- Integral connection design reduces leak paths compared to API & eliminates coupling‑based running issues
- Optimized groove & protective ring that does not sacrifice tension or internal pressure
- Mating internal shoulders reduce turbulence & eliminate “J‑area” along with its associated corrosion, abrasion & erosion tendency
- Non‑interference threadform nearly eliminates galling even after repeated make‑ups
- Two‑step with internal & mid‑wall torque shoulders allows for deep stabbing, providing consistent field make‑up & fast running practices
- Metal‑to‑metal seal designed to be stronger than the pipe body & proven to be +100 % gas tight through deviated wells
