Threaded Connections
BTS®-FGL™
Integral, Upset, Premium, Injection String, Production Tubing, Special Clearance, Coatable

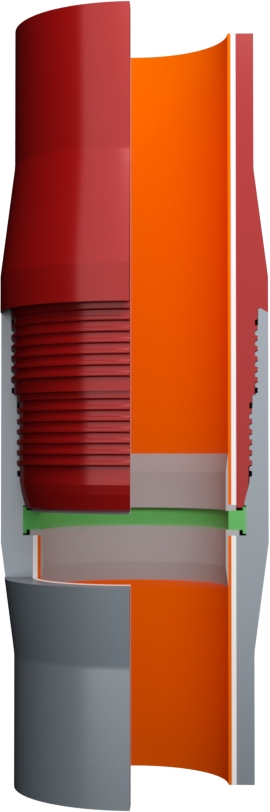

The BTS®‑FGL is a gas‑tight, two‑step premium connection featuring a bored, full open (FO) inside diameter and a precision‑machined groove to accommodate liner rings and flanges used in Fiber Glass Liner (FGL) or Glass Reinforced Epoxy (GRE) systems. With adjusted thread diameters to better utilize the upset’s cross‑sectional area, the BTS®‑FGL retains more of the original strength of the BTS®‑8 while maintaining the sealing reliability and field‑proven performance required in corrosion‑resistant liner installations
Performance & Sizes
| Size range | 2.062″ – 4.500″ |
| Tension | 103 % – 106 % |
| Compression | *Not listed* (compression figures not provided on the page) |
Testing Performed
- Make & Break
- Field Proven
Key Features
- Flush inside diameter enables easy lining operations
- Optimized design & lining assembly that does not sacrifice tension or internal pressure
- Integral connection design reduces leak paths compared to API & eliminates coupling‑based running issues
- Built with the trusted Benoit® Two‑Step design; proven to reduce galling & stab deep for consistent & fast running practices
- Metal‑to‑metal seal proven to be 100 % gas tight through deviated wells
