Threaded Connections
SBFJ™
Integral, Semi Flush Joint, Upset, Premium, Special Clearance

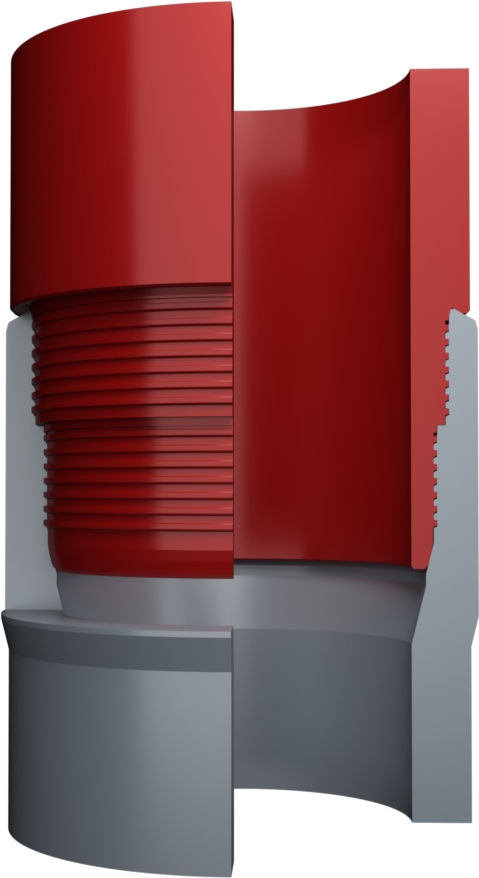

The Super Benoit® Flush Joint (SBFJ™) is a robust flush joint connection engineered for 5.500″ tubing. It uses a larger outside‑diameter connection to accommodate a two‑step thread and provide sufficient cross‑sectional area. The connection incorporates internal, external and mid‑connection torque shoulders and two metal‑to‑metal seals.
Performance & Sizes
| SIZE RANGE | 5.500” |
| TENSION | 53% |
Testing Performed
- Make & Break
- Field Proven
Key Features
- Flush inside diameter for optimal flow.
- Integral design reduces leak paths versus API and eliminates coupling‑based running issues.
- Slim outer diameter allows installation in tight‑tolerance wellbores.
- Designed with Benoit®’s two‑step thread to reduce galling and facilitate deep stabbing.
- Metal‑to‑metal seals provide 100 % gas‑tight performance.
